6000bph 水ライン
Related Products

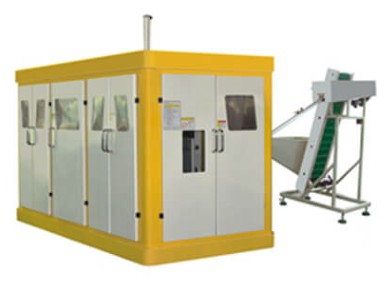

5500BPH 4キャビティ高効率自動ペットボトルマシン
4 cavity high efficiency automatic PET bottle machine is a new generation of fully automatic and versatile machine for mass production of PET bottles with latest technology. This automatic PET bottle making machine has the ability to produce 5500 bottles per hour at 500ml ranging from 50ml to 2000ml widely used for industry of bottling water, juice, carbonated soft drink, dairy, food, household, cosmetics, person care, pharmaceutics and so on.
| モデル | HZ-5500 |
| キャビティ数 | 4キャビティ |
| 出力容量 | 5500 BPH |
| 最大容器容量 | 2 L |
| 最大ネック径 | 38mm |
| 最大容器直径 | 115 mm |
| 最大コンテナ高さ | 340 mm |
| 加熱パワー | 35 KW |
| 作動低圧 | 0.8 Mpa |
| ブローイング圧力 | 3.5 Mpa |
| 機械寸法（長さ×幅×高さ） | 3.7 x 1.55 x 2.7 M |
| マシン重量 | 4500キロ（約） |
| コンベア寸法 | 1.5 x 0.85 x 2.2 M |
| コンベア重量 | 500キログラム（約） |
WT-RO-5000 Prefiltration and Reverse Osmosis
WT-RO-5000 commercial and industrial reverse osmosis systems are engineered to economically produce high purity water by removal of dissolved minerals, bacteria, particles, and organic impurities. Each machine is constructed using the highest quality components and materials for reliable operation and exceptional performance.
| Model No | WT-RO-5000 |
| 定員 | 5000LPH(Liter per Hour) |
| Nominal Recovery | 65-75% |
| Nominal Salt Rejection | 99.60% |
| Operating Temperature | 15°C-45°C |
| Design Temperature | 25°C |
| Feed Pump | 1.1KW |
| High Pressure Pump | 5.5KW |
| 電圧 | 220V /380V/460V – 50Hz/60Hz |
6000-7000 Bottles per Hour Bottled Water Plant
This bottled water equipment is a fully automatic monoblock rinsing filling capping machine and designed to fill purified water, mineral water and non carbonated drinks in plastic bottles ranging from 200ml to 1500ml. This water bottle filing machine includes 16 rinsing nozzles, 16 filling heads and 5 cap head assemblies. 6000 to 7000 bottles per hour can be achieved per hour.
| モデル | CGF 16-16-5 |
| 出力容量 | 6000-7000Bottles/Hr at 500ml volume |
| リンスバルブ数 | 16 |
| フィルヘッドの数 | 16 |
| キャップヘッド数 | 5 |
| 適用ボトル径 | Φ50 mm ~Φ90 mm |
| 適用ボトルの高さ | 150 mm - 310 mm |
| 適用スクリューキャップ径 | Φ25 mm ~Φ35 mm |
| 適用スクリューキャップの高さ | 15 mm - 25 mm スクリューキャップ |
| 電源電圧 | 220/380v 50/60hz 3ph |
| メインモーター | 3KW |
| 重量 | 3500 kgs(approx) |
| 寸法（コンベアなし） | 2500 x 1800 x 2250 mm |
スチームシュリンクトンネル
This series water bottling machines have been engineered for start-up companies to pack purified water, mineral water and non-carbonated drinks in PET bottles from 200ml to 1500ml, integrating rinsing, filling and capping into one, which includes 8 rinsing valves, 8 filling heads and 3 capping head assemblies. 2000 to 3000 bottles per hour can be achieved.
- Over all stainless structure
- Easy to install and operation adjustment is convenient
- Suitable for PVC, PET, OPS shrink packaging materials
- Suitable for round, square, oval-shaped, curve-shaped containers
- Shrinkage capability 450BPM to 600BPM
- Stand Frame Adjustable
- Drip tray
- Individual Valve control will be included
- Exhausted blower
Specifications are subject to change without notice, All rights are reserved
High Speed Shrink Sleeve Label Machine
High speed shrink sleeve label machine is designed for high volume production rates to deliver and shrink a consistent stream of sleeve labels and tamper evident bands on a variety of empty or filled round, square, rectangular, oval containers in plastic, glass and metal widely used for beverage, food…
| Model No | SLM-350 | SLM-450 | SLM-600 |
| Speed Range | 350BPM | 450BPM | 600BPM |
| Container Shape | Round, square, rectangular and oval containers with contours | ||
| Container Type | Glass, plastic and metal | ||
| Sleeve Label Material | PVC, PET, OPS, & OPP | ||
| Material Thickness | 0.03-0.13mm | ||
| Container Dimeters | 28-125mm | ||
| 容器の高さ | 50-305mm | ||
| Sleeve Lay Flat | 25-200mm | ||
| Sleeve Cut Length | 38-305mm | ||
| Core Size | 5″- 10″Adjustable | ||
| Full Spool Outside Diameter | 500mm | ||
| 電気供給 | 220V 50/60HZ 1/3PH;380V 50/60HZ 3PH | ||
| 機械寸法 | 2.1×1.1x2M | 2.1×1.2x2M | 2.5×1.2×2.2M |
| *Speed Dependent on Sleeve Length and Width. | |||
L型自動シュリンク包装機
L type automatic shrink wrap machine is fully automatic industrial shrink wrap machine used to pack either as individual packs like carton or as collations, Applications include transit collation of bottles, jars and canned products and industrial products.
| Packing Speed | 8-10Packs/Min |
| Max Pack Size | 600(L)x400(W)x350(H)mm |
| Applicable Film | Polyethylene(PE) Film |
| Max Film Width | 600mm |
| Max Film Thickness | 100Micro |
| Conveyor Electric Supply | 220V 50/60HZ 1PH 0.75KW |
| Sleeve Wrapper Electric Supply | 220V 50/60HZ 1PH 1.20KW |
| Shrink Tunnel Electric Supply | 380V 50/60HZ 3PH 26.00KW |
| Shrink Tunnel Chamber | 1800x600x400mm |
| コンベア寸法 | 2700x350x900mm |
| Sleeve Wrapper Dimension | 1500x910x2000mm |
| Shrink Tunnel Dimension | 3300x900x1850mm |
| Idle Roller Conveyor | 1200x800x950mm |
| コンベア重量 | 180kgs |
| Sleeve Wrapper Weight | 500kgs |
| Shrink Tunnel Weight | 600kgs |
| Idle Roller Weight | 60kgs |
